Power your home or business with the Anern EVO-L Series Hybrid Solar Inverter. Featuring pure sine wave output, built-in 120A MPPT charging, batteryless operation, automatic lithium battery activation, and optional WiFi monitoring, it delivers maximum efficiency and uninterrupted power performance. With a wide PV input range, dual AC outputs, and rugged anti-dust protection, the EVO-L Series provides a dependable and cost-effective solution for residential, commercial, and off-grid solar energy systems.

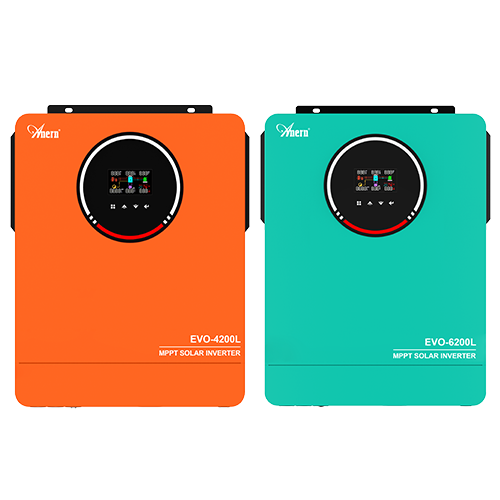

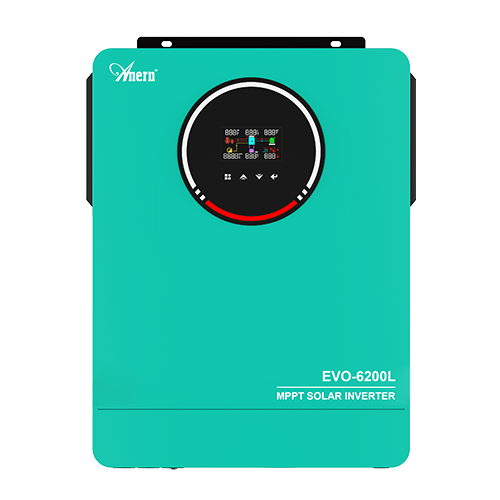

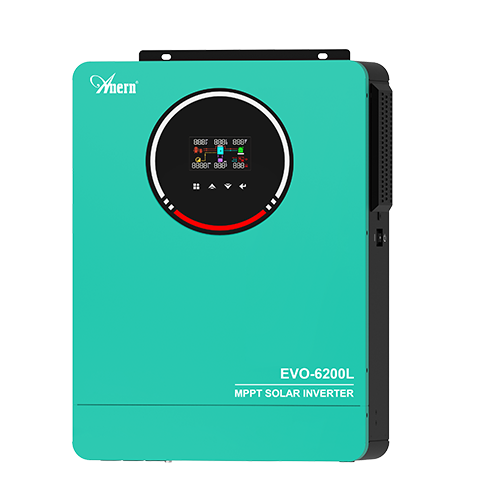

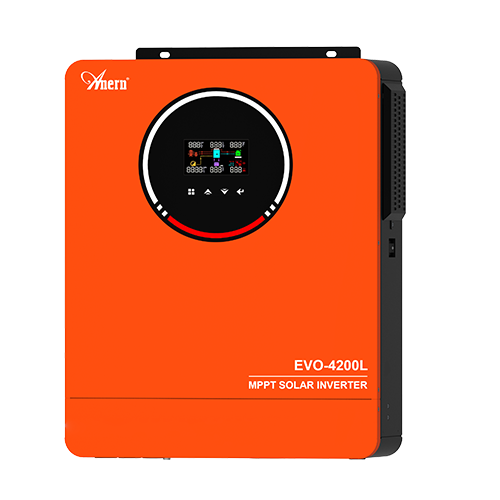

4.2KW 6.2KW Pure Sine Wave Hybrid Solar Inverter Parameter
|
Model |
EVO-4200L |
EVO-6200L |
|
Phase |
1-phase in /1-phase out |
|
|
Maximum PV Input Power |
6200W |
8000W |
|
Rated Output Power |
4200W |
6200W |
|
MPPT Voltage Range |
60-450Vdc |
|
|
Number of MPPT Trackers /Maximum Input Current |
1/27A |
|
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Acceptable Input Voltage Range |
90-280 VAC |
|
|
Frequency Range |
50 Hz/60 Hz(Auto sensing) |
|
|
Nominal DC Voltage |
24Vdc |
48Vdc |
|
Maximum Solar Charging Current |
120A |
|
|
Maximum AC Charging Current |
120A |
|
|
Maximum Charging Current |
120A |
|
|
DimensionDxWxH(mm) |
423*344*112 |
|
|
Net Weight (kg) |
7.2kg |
8.2kg |
|
Packing details |
||
|
Size |
500*415*180mm |
|
|
G.W/Pcs |
8.6kg |
9.6kg |
Advantages of 4.2KW 6.2KW Pure Sine Wave Hybrid Solar Inverter
Optional WiFi Monitoring & Remote Management
Monitor system performance anytime and anywhere through the optional WiFi module, enabling real-time data tracking and convenient remote control.

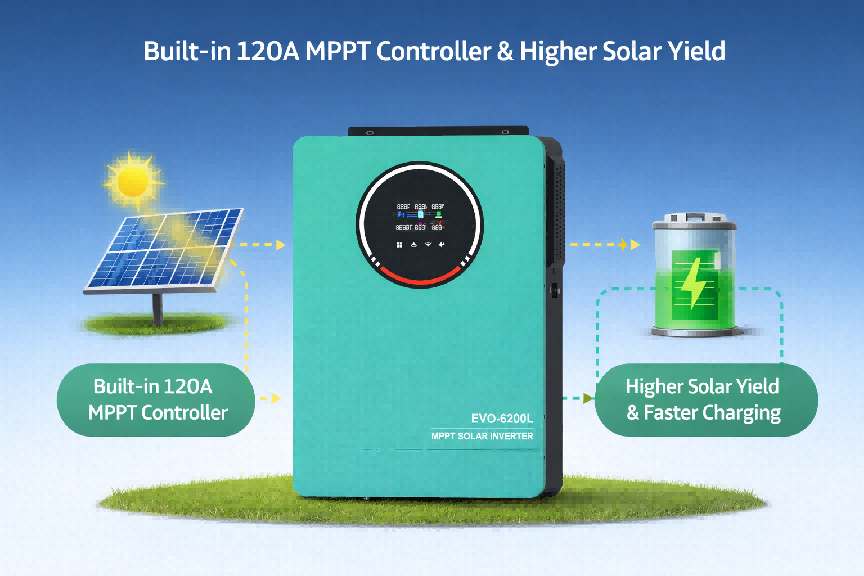

Built-in 120A MPPT Controller & Higher Solar Yield
Integrated MPPT technology tracks the maximum power point of solar panels in real time, increasing solar energy utilization and delivering faster, more efficient battery charging.

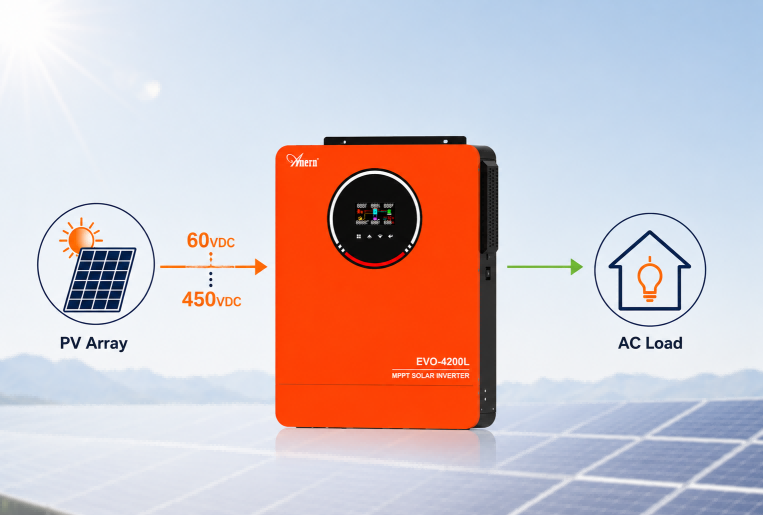

Wide PV Input Range & More System Compatibility
Supports a wide PV input voltage range from 60VDC to 450VDC, making it compatible with different solar panel configurations and simplifying system design.

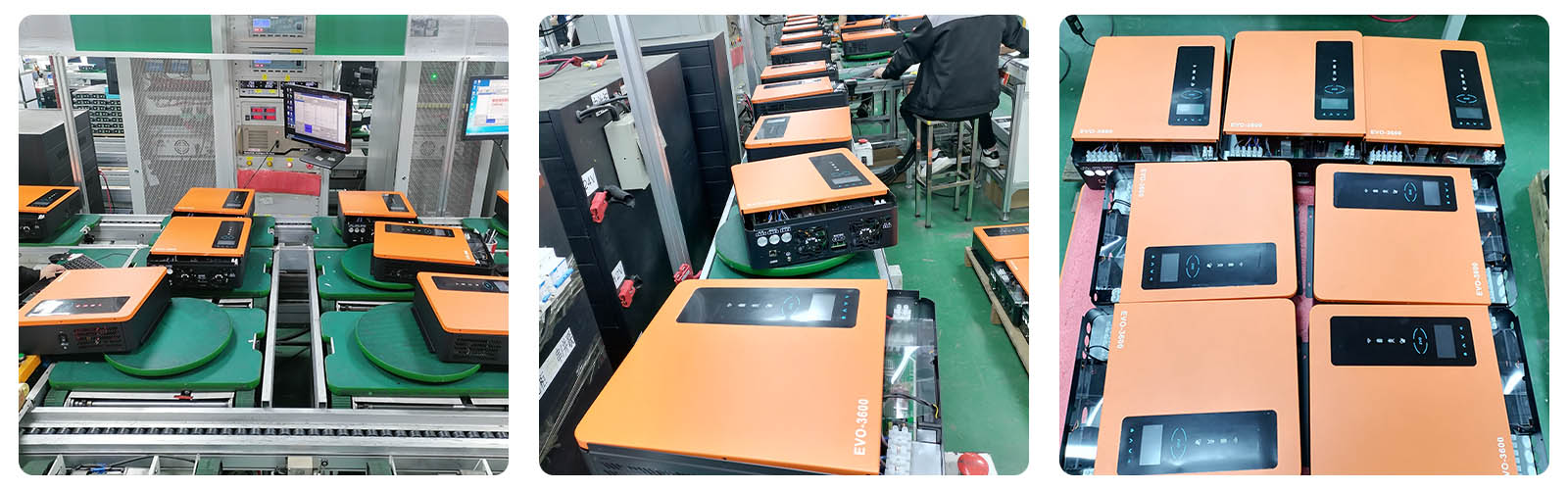

4.2KW 6.2KW Pure Sine Wave Hybrid Solar Inverter Factory
Anern Solar Inverter Factory specializes in the research, development, and manufacturing of high-performance solar inverters for residential, commercial, and off-grid energy systems. Backed by over 17 years of experience in the solar industry, Anern continuously invests in advanced technology, automated production equipment, and product innovation to enhance inverter efficiency, reliability, and user experience.Every inverter undergoes strict quality control and testing procedures to ensure long-term stability and superior performance in various operating environments.Anern is committed to helping global partners deliver reliable, efficient, and sustainable solar power systems.
